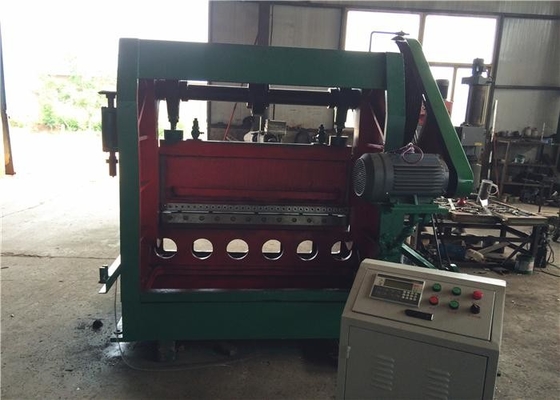

High Speed Expanded Mesh Machine 0 - 1.5 Mm Feeding Distance JQ25 - 16 / 25

High Speed Expanded Mesh Machine 0 - 1.5 Mm Feeding Distance JQ25 - 16 / 25
High Speed Expanded Mesh Machine 0 - 1.5 Mm Feeding Distance JQ25 - 16 / 25 High Speed Expanded Mesh Machine 0 - 1.5 Mm Feeding Distance JQ25 - 16 / 25

Large Image :  High Speed Expanded Mesh Machine 0 - 1.5 Mm Feeding Distance JQ25 - 16 / 25 Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: Anao
Certification: CE,ISO9001
Model Number: JQ25-25 and JQ25-16 high speed type

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case package
Delivery Time: 30 days after receiving deposit or L/C
Supply Ability: 2 - 3 sets per month
Detailed Product Description
Product: Expaned Metal Machine High Speed Type Working Width: 1000mm,1250mm
Material Thickness: 0.2-1.2mm Distance Of Feeding: 0-1.5mm
Working Speed: 280/min Motor: 3KW,4KW
High Light:

expanded metal sheet making machine

,

expanded wire mesh machine



High Speed Types Of Expanded Mesh Making Machine JQ25-25 And JQ25-16









Introduction:



Except normal working speed expanded metal mesh making machine,our company also designed high speed type of expanded metal mesh making machine.Only two models have high speed type:JQ25-16 and JQ25-25.Only some of the small types expanded metal machine can design high speed type.



High speed type of expanded metal machine designed for small LWD&SWD and small thickness.Like LWD&SWD 2*4mm,3*6mm.



Technical parameter of expanded metal machine high speed type:



Expanded metal machine JQ25-16
Working width 1000mm
Material thickness 0.2-1.0mm
Distance of feeding 0-1.5mm
Working speed 280/min
Motor 3KW 220/380v 50Hz
Weight 2470KG
Measurement 1750mm*1500mm*1900mm



Expanded metal machine JQ25-25 high speed type
Working width 1250mm
Material thickness 0.2-1.2mm
Distance of feeding 0-1.5mm
Working speed 280/min
Motor 4KW 220/380v 50Hz
Weight 3110KG
Measurement 1940mm*1600mm*2010mm



Aluminum expanded metal mesh sample produced by high speed type of expanded metal machine:





High Speed Expanded Mesh Machine 0 - 1.5 Mm Feeding Distance JQ25 - 16 / 25 0
