Product: | Rib Lath Production Line | Rib Lath Width: | 600mm(Can Be Customized) |
---|---|---|---|
Material Thickness: | 0.3mm | Rib Deep: | 5mm |
Rib Distance: | 150mm | Mesh Hole Size: | 12.5*17mm |
High Light: | angle bead machine,corner bead machine |
600mm Width Galvanized Rib Lath Mesh Making Machine With Rib Distance 150mm
Introduction:
Metal rib lath machine is used for produce galvanized rib lath.The full production line includes the following equipments:Decoiler,main punching machine,expanding machine,collecting table.Rib lath production line specialized in producing metal rib lath,with features of high production efficiency(produce 80.46m per hour),less waste materials,low cost,stable property,etc.
Technical parameter:
Rib lath production line | ||
Rib lath width | 600mm | |
Material thickness | 0.3mm | |
Rib deep | 5mm | |
Rib distance | 150mm | |
Mesh hole size | 12.5*17mm | |
Productivity | 32 sheets/hour |
DECOILER:
INNER DIAMETER OF THE COIL: 450-500MM
MATERIAL WIDTH:<500MM
MOTOR: 1.5KW380V50HZ
MEASUREMENT: LENGTH 1500MM, WIDTH 1000MM, HEIGHT 1100MM.
MAX LOAD CAPACITY: 2 TON
PUNCHING MACHINE:
MOTOR: 4KW380V50HZ
MEASUREMENT: LENGTH 1600MM, WIDTH 1000MM, HEIGHT 1700MM.
EXPANDING MACHINE:
MOTOR: 4KW380V50HZ
MEASUREMENT: LENGTH 6110MM, WIDTH 1000MM, HEIGHT 1400MM.
COLLECTING TABLE:
MOTOR: 1.1KW380V50HZ
MEASUREMENT: LENGTH 2800MM, WIDTH 1200MM, HEIGHT 1630MM.
Production process of rib lath production line:
Metal rib lath machine is used for produce metal rib lath.Rib lath machine's working process: De-coil → punching → Expanding and shearing → Rib lath feed out.
1. Decoiler: Using speed adjustable motor, in order to cooperate with the punching machine feeding speed, recoiler speed can be adjusted, feeding speed a little faster than punching machine. When the steel material accumulated a certain amount, recoiler stops working, when the steel material use surplus to a certain amount, recoiler restart feeding material.
2. Punching machine: feeding traction by stepper motor, it can achieve feeding smooth and steady and high accuracy.

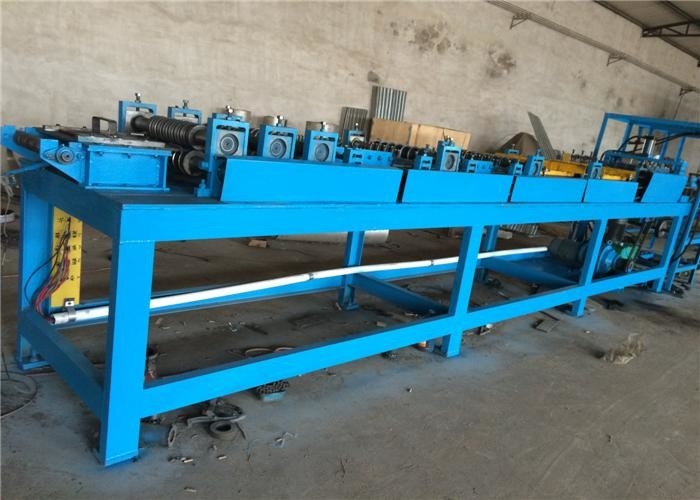

3. Expanding machine: adopt chain drive, effectively solve the influence of upper shaft to drive. Using multi-stage expansion gradually open the mesh hole. Multi-stage expansion can make the hole size very uniform, reduced the traction and expansion force, and reduced the overall load.Multistage pressing wheels ahead, multistage leveling rollers behind; made the rib lath product straight, improve product quality.Then cutting part consists of hydraulic pressure station, cutting dies and automatic control part. When expanding machine start working, hydraulic pressure station keep pressure status, when rib lath finished product reach 2500MM length, expanding machine stop working and cutting part cut the rib lath, then return quickly, expanding machine start working again.

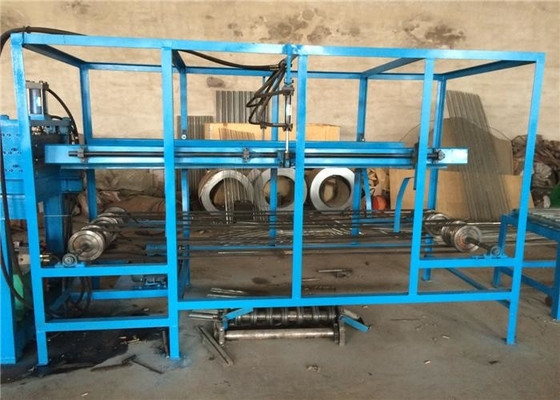

4. Collecting table: Rib lath after cutting fall on the collecting table.
Finished product photo from our customer:
