Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh

I'm Online Chat Now
It is a very good company. they offer me very good quality , reasonable Price and quick delivery time.

—— Mark White

I buy metal mesh from them , their mesh very thick , when i installed , i m very satisified . i hope to buy from again.

—— Judy

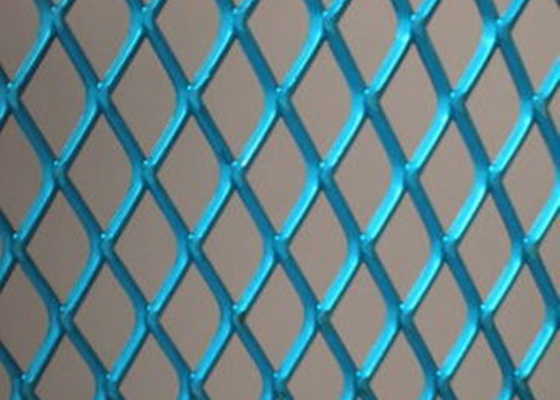

Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh

Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh
Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh

Large Image :  Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: Anao
Certification: ISO
Model Number: YNS

Payment & Shipping Terms:

Minimum Order Quantity: 100 rolls
Price: Negotiable
Packaging Details: each roll in one carton
Delivery Time: 30 days after receiving deposit or L/C
Supply Ability: One 20' container per month
Detailed Product Description
Product: Aluminum Expanded Metal Mesh Mesh Style: Diamond
Thickness: 0.3mm-3.0mm Mesh Width: 0.5-1.5 Meter
Mesh Length: 18-50 Meter Material: Aluminum
High Light:

aluminum flattened expanded sheet

,

expanded metal screen mesh

Diamond Aluminum Expanded Metal Mesh For Doors Security With All Kinds Color





Diamond expanded mesh is also one of the wire mesh industry. It is also called anti glare net, expanded metal net, diamond net, punching net and so on.

Diamond expanded mesh is a metal sheet with diamond shaped mesh formed after stamping and stretching through special machinery.

Material: low carbon steel plate, stainless steel plate, aluminum magnesium alloy plate, aluminum plate.



Applications:



Because of aluminum expanded metal mesh's favorable strength-to-weight ratio and attractive finish, aluminum expanded metal has hundreds of uses from air filters to patio furniture to walkways.



Sizes:



Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh 0
Long way of mesh: TB: 12.5-200mm
Short way of mesh: 5-80mm
Thickness: 0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from 600-2000m



Sheet
Thickness
Opening in
Width(mm)
Opening in
Length(mm)
Stem
mm
Roll width
mm
Roll Length
mm
Weight
kg/m 2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
4 80 180 4 2 10 3.0
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.2

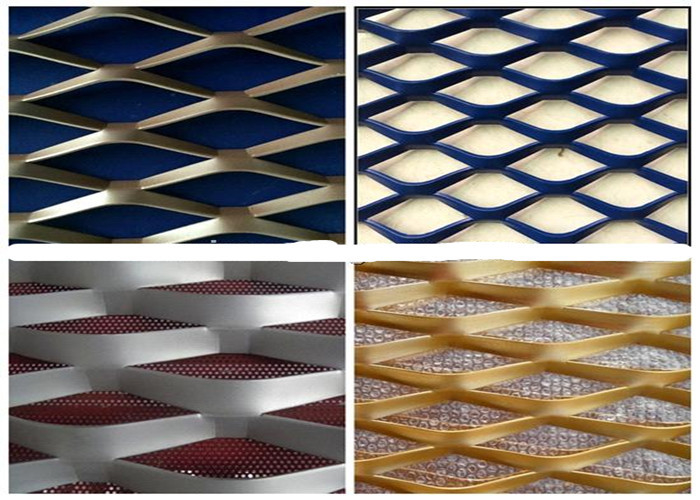

 Aluminum Expanded Metal Mesh Pictures:

Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh 1
