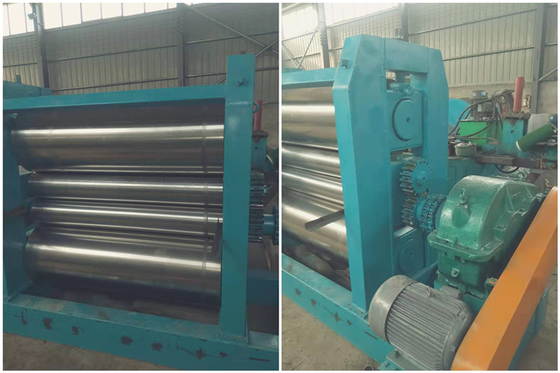

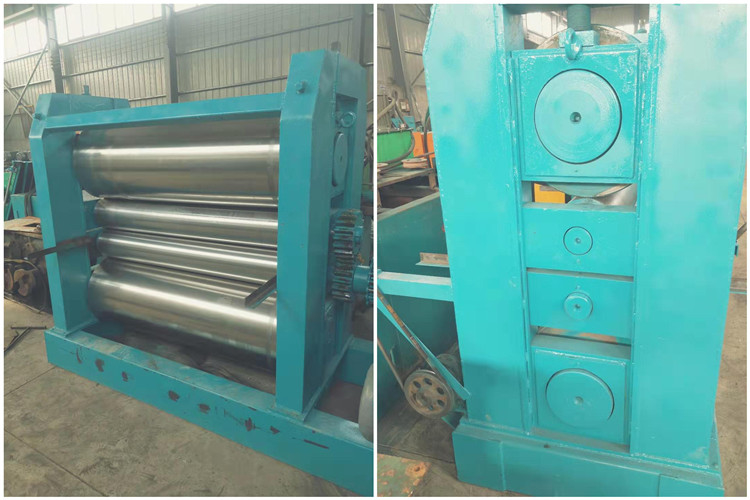

Four Rollers Metal Flattening Machine With 500 Mm Roller And 200 Mm Roller

Four Rollers Metal Flattening Machine With 500 Mm Roller And 200 Mm Roller
Four Rollers Metal Flattening Machine With 500 Mm Roller And 200 Mm Roller Four Rollers Metal Flattening Machine With 500 Mm Roller And 200 Mm Roller

Large Image :  Four Rollers Metal Flattening Machine With 500 Mm Roller And 200 Mm Roller Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: Anao
Certification: CE, ISO9001
Model Number: PW5020

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case package
Delivery Time: 30 days after receiving deposit or L/C
Supply Ability: 2 - 3 sets per month
Detailed Product Description
Product: Flattening Machine Working Width: 1500mm
Big Roller Diameter: 500mm Small Roller Diameter: 200mm
Speed: 12-15m/min Weight: 7.5ton
High Light:

steel plate straightening machine

,

sheet leveling machine



Four Rollers Metal Flattening Machine With 500 Mm Roller And 200 Mm Roller





Introductions:



PW Series expanded metal mesh flattening machine is specially designed for expanded metal mesh flattening.It’s a accessory equipment of expanded metal machine. It can make expanded wire mesh smoothly.And the flattened wire mesh have much more widely different applications.



Generally flattening machine have two same rollers.Recently our company designed four-roller flattening machine,with two big 500mm diameter rollers and two small 200mm diameter rollers.Four-roller flattening machine's flatten force is bigger than two-roller flattening machine.So if needed,customer can choose four-roller flattening machine.



When expanded metal machine finished produce expanded metal mesh or aluminum expanded metal mesh,the mesh surface is not pretty well,need further processing,then should use flattening machine flatten the mesh.The flattened expanded metal has nice outlook and smooth appearance, with higher value.



Our company can supply all kinds of flattening machine, such as two-roller flattening machine, manual flattening machine, automatic flattening machine, etc. Currently the machine is applied to processing expanded metal with a maximum sheet thickness of 4mm and a length between 0.5m to 2.7m.Flattening machine can customized roller diameter range from 300mm to 800mm,working width 1000mm to 3000mm.



Besides, we can make the flattening machine according to customers requirements.



Flattening Machine PW5020 Parameter:



Flattening Machine PW5020
Working width 1500mm
Big roller diameter 500mm
Small roller diameter 200mm
Working speed 12-15m/min
Weight 7.5ton





Operation of flattening machine:



Adjust the flattening machine's left and right pressure vessels,slowly push the uneven mesh into the front table,after the two pressure rollers flattening,then collect or recoil the mesh in the other side.For the finished production expanded metal mesh,flattened by flattening machine,not only planish expanded metal mesh’s connect points, let mesh surface smooth and beautiful,at the same time can eliminated the internal forces during produce expanded metal mesh,thus improved the mesh rigidity.



Flattened mesh flattening by four-roller flattening machine:



Four Rollers Metal Flattening Machine With 500 Mm Roller And 200 Mm Roller 0
