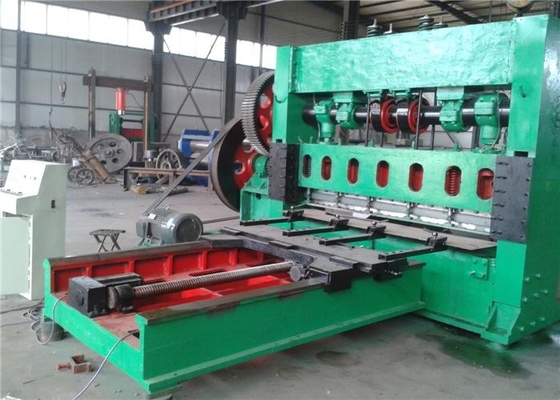

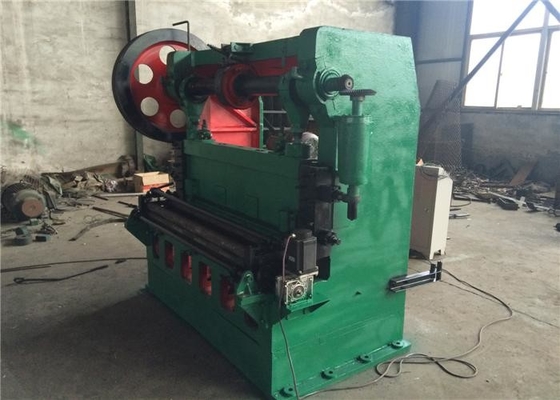

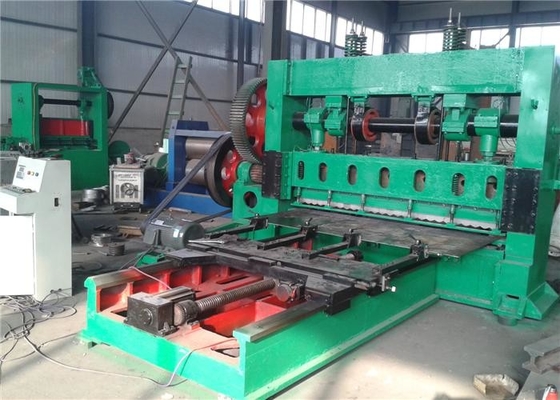

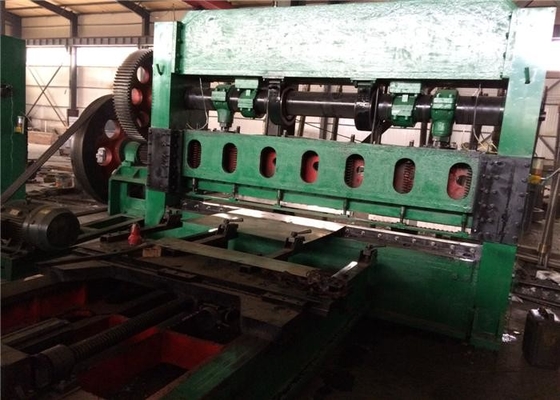

Green Expanded Mesh Making Machine 220 / 380 Voltage 52 / Min Working Speed

Name: Green Expanded Mesh Making Machine 220 / 380 Voltage 52 / Min Working Speed
Brand: Anao
SKU: JQ25-25,63C,100,100B
Price: 1.00 USD
Availability: InStock
Rating: 5 (183 reviews)

Large Image : Green Expanded Mesh Making Machine 220 / 380 Voltage 52 / Min Working Speed Get Best Price

Product Details:

Place of Origin:	Hebei China
Brand Name:	Anao
Certification:	CE,ISO9001
Model Number:	JQ25-25,63C,100,100B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case package or container
Delivery Time:	30 days after receiving deposit or L/C
Supply Ability:	2 - 3 sets per month

Contact Now

Detailed Product Description

Product:	Expanded Metal Machine	Thickness:	0.2-6mm
Working Width:	1250-2500mm	Distance Of Feeding:	0-10mm
Motor:	3KW-22KW	Voltage:	220/380V 50Hz 3phases
High Light:	expanded metal sheet making machine , expanded wire mesh machine

Best-selling Types Of Expanded Mesh Making Machine For Expanded Metal Mesh

Best-selling types of expanded metal machine in our company are JQ25-25,JQ25-63C,JQ25-100,JQ25-100B,ect.

Technical parameter of expanded metal machine:

Expanded metal machine JQ25-25
Working width	1250mm
Material thickness	0.2-1.5mm
Distance of feeding	0-3.0mm
Working speed	150/min
Motor	4KW 220/380v 50Hz
Weight	3110KG
Measurement	1940mm1600mm2010mm

Expanded metal machine JQ25-63C
Working width	2000mm
Material thickness	0.5-4.0mm
Distance of feeding	0-10.0mm
Working speed	60/min
Motor	15KW 220/380v 50Hz
Weight	10500KG
Measurement	3500mm1750mm2300mm(Main machine) 2650mm1940mm700mm(Secondary machine)

Expanded metal machine JQ25-100
Working width	2000mm
Material thickness	0.5-6.0mm
Distance of feeding	0-10.0mm
Working speed	52/min
Motor	22KW 220/380v 50Hz
Weight	12500KG
Measurement	3500mm1750mm2300mm(Main machine) 2650mm1940mm700mm(Secondary machine)

Expanded metal machine JQ25-100B
Working width	2500mm
Material thickness	0.5-4.0mm
Distance of feeding	0-10.0mm
Working speed	52/min
Motor	22KW 220/380v 50Hz
Weight	14000KG
Measurement	3930mm2260mm2300mm(Main machine) 2650mm1940mm700mm(Secondary machine)
