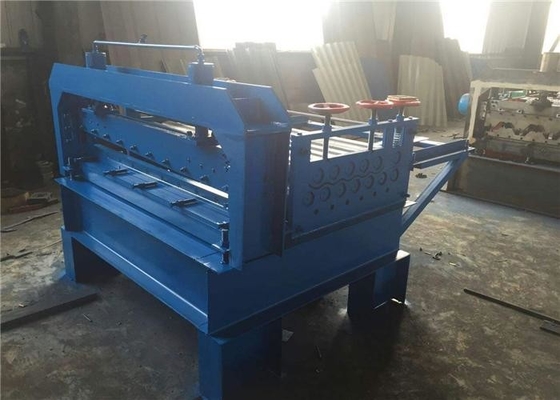

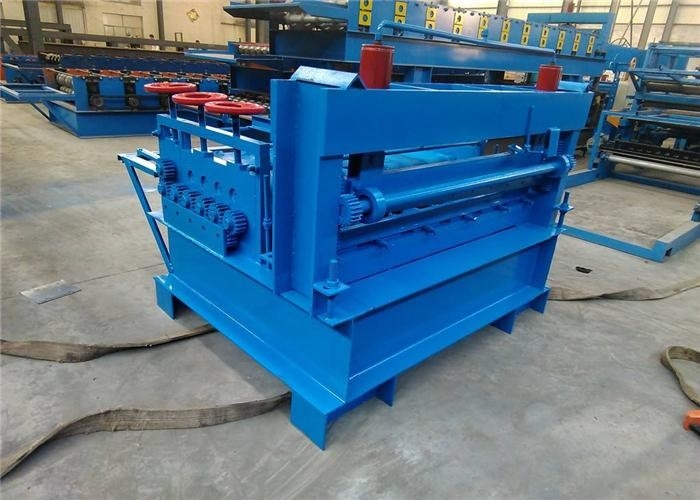

High powered Multi Roll Sheet Straightening Machine With Customized Rollers

large.img.alt
small.img.alt small.img.alt

Large Image :  High powered Multi Roll Sheet Straightening Machine With Customized Rollers Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: Anao
Certification: CE, ISO9001
Model Number: XP12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case package
Delivery Time: 20-30 days after receiving deposit or L/C
Supply Ability: 2-3 sets per month
Detailed Product Description
Product: Straightening Machine Working Width: 1200mm
Thickness: 0.3-1.5mm No. Of Rollers: 13 Pcs
Roller Diameter: 90mm Motor: 5.5KW220/380v 50Hz
High Light:

metal straightening machine

,

plate straightening machine



High-powered Multiroll Straightening Machine With Customized Rollers



Introduction:



Straightening machine/Leveling machine is a kind of ancillary facilities of expanded metal machine.

Straightening machine/Leveling machine’s purpose is leveling expanded metal mesh or other kind of wire mesh,and let mesh appearance level and straight.



Straightening machine/Leveling machine’s specific configuration can customized the number of rollers according to customer’s requirement.Generally have 9 rollers,11 rollers and 13 rollers.Roller diameter and working width of machine according to customer's mesh width and thickness.



Straightening machine/Leveling machine advantages:

  1. Straightening machine/leveling machine can level many kinds of wire mesh,especially expanded metal mesh.Expanded metal mesh with different mesh width and thickness also can leveling by one machine.
  2. Straightening machine/leveling machine can improve added value of wire mesh,wire mesh after leveled,price will higher than mesh without leveled.
  3. Straightening machine/leveling machine can made wire mesh appearance beautiful and level.
  4. Straightening machine/leveling machine can easy operate,with long use time.Becasue of high working speed,high production efficiency.

Parameter:



Straightening machine
Working width 1200mm
Material thickness 0.3-1.5mm
Number of rollers 13 pcs
Roller diameter 90mm
Motor 5.5KW 220/380v 50Hz



Expanded metal mesh after straightening machine leveling:



High powered Multi Roll Sheet Straightening Machine With Customized Rollers 0
