Small Metal Making Machine , Max 1500 Mm Working Width Metal Expander Machine

Small Metal Making Machine , Max 1500 Mm Working Width Metal Expander Machine
Small Metal Making Machine , Max 1500 Mm Working Width Metal Expander Machine Small Metal Making Machine , Max 1500 Mm Working Width Metal Expander Machine

Large Image :  Small Metal Making Machine , Max 1500 Mm Working Width Metal Expander Machine Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: Anao
Certification: CE,ISO9001
Model Number: JQ25-6.3,16,25,40,50

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case package or container
Delivery Time: 30 days after receiving deposit or L/C
Supply Ability: 2 - 3 sets per month
Contact Now
Detailed Product Description
Product: Small Types Expanded Metal Machine Max Thickness: 0.2-2.0mm
Working Width: 600-1500mm Distance Of Feeding: 0-10mm
Motor: 2.2KW-11KW Voltage: 220/380V 50Hz 3phases
High Light:

expanded wire mesh machine

,

expanded mesh making machine



Small Types Of Expanded Metal Mesh Making Machine Working Width Up To 1500mm





Technical parameter of expanded metal machine small types:



small types of expanded metal machine
Working width 600mm-1500mm
Max thickness 0.2-2.0mm
Distance of feeding 0-10mm
Motor 2.2KW-11KW
Voltage 220/380v 50Hz 3phases



Small types of expanded metal machine detailed parameter:



Model Material thickness Material max width Distance of feeding Stroke per min Motor
JQ25-6.3 Max 1.0mm 600mm 0-3.0mm 300/min 2.2kw
JQ25-16 Max 1.2mm 1000mm 0-3.0mm 150/min 3kw
JQ25-25 Max 1.5mm 1250mm 0-3.0mm 150/min 4kw
JQ25-40 Max 1.5mm 1500mm 0-5.0mm 150/min 7.5kw
JQ25-50 Max 2.0mm 1300mm 0-10.0mm 80/min 11kw



PLC controler of small types of expanded metal machine:

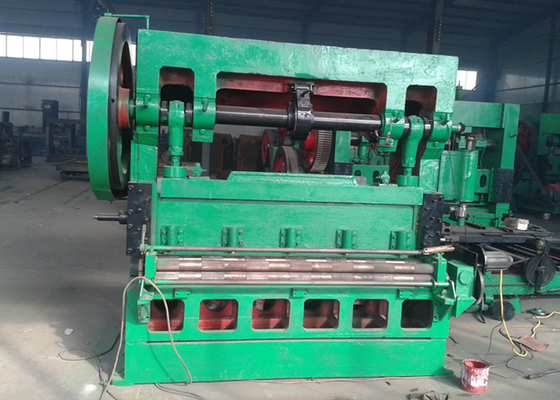

Small Metal Making Machine , Max 1500 Mm Working Width Metal Expander Machine 0



Small types of expanded metal machine load into container:

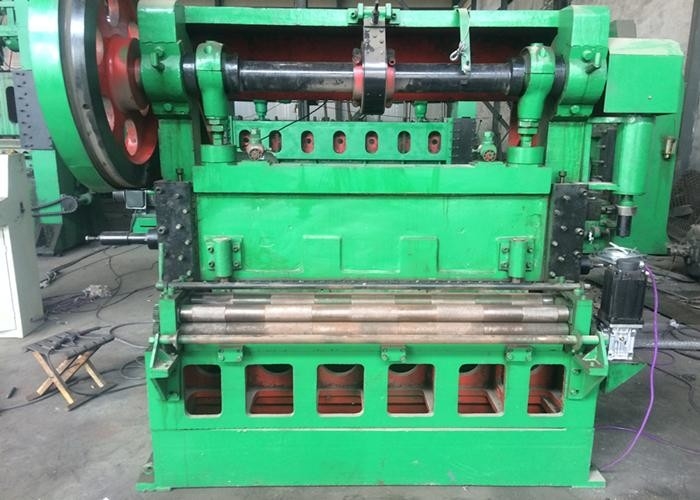

Small Metal Making Machine , Max 1500 Mm Working Width Metal Expander Machine 1
