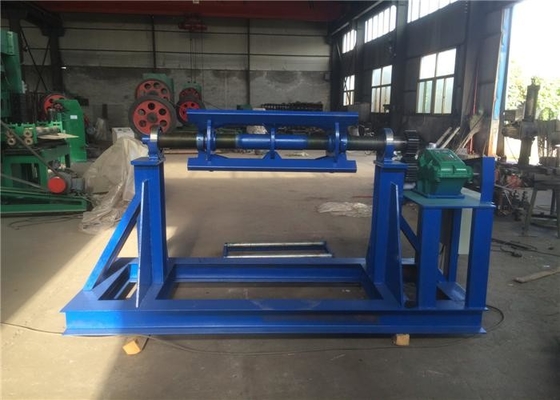

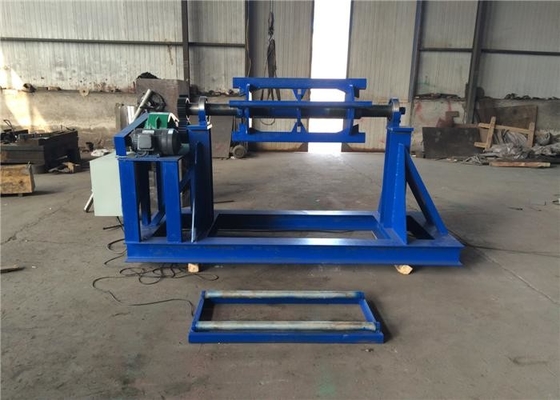

Steel / Aluminum Coil Sheet Metal Decoiler For Expanded Metal Machine Blue Color

I'm Online Chat Now
It is a very good company. they offer me very good quality , reasonable Price and quick delivery time.

—— Mark White

I buy metal mesh from them , their mesh very thick , when i installed , i m very satisified . i hope to buy from again.

—— Judy

Steel / Aluminum Coil Sheet Metal Decoiler For Expanded Metal Machine Blue Color

Steel / Aluminum Coil Sheet Metal Decoiler For Expanded Metal Machine Blue Color
Steel / Aluminum Coil Sheet Metal Decoiler For Expanded Metal Machine Blue Color Steel / Aluminum Coil Sheet Metal Decoiler For Expanded Metal Machine Blue Color

Large Image :  Steel / Aluminum Coil Sheet Metal Decoiler For Expanded Metal Machine Blue Color Get Best Price

Product Details:

Place of Origin: China
Brand Name: Anao
Certification: CE, ISO9001
Model Number: KJ10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case package
Delivery Time: 20-30 days after receiving deposit or L/C
Supply Ability: 2-3 sets per month
Detailed Product Description
Product: Decoiler Width: 1000mm
Motor: 2.2KW220/380v 50Hz Inner Diameter: 450-600mm
Reducer: Type 250 Weight: 700KG
Load-bearing: 5 Ton Measurement: 2600mm*1000mm*1350mm
High Light:

hydraulic decoiler machine

,

sheet metal guillotine



Steel And Aluminum Metal Coil Decoiler Bearing 5ton For Expanded Metal Machine





Decoiler instruction:



Decoiler is one kind of expanded metal machine’s accessory equipment.The useage of decoiler is to bearing material coil for expanded metal mesh production.The coils can be steel,aluminum,stainless steel,ect.The most common bearing weight customer need is 5ton.Decoiler is small type expanded metal machine's accessory equipment.Because small types of expanded metal machine material can be both coil and sheet.If material is coil,will need decoiler to bearing the coil.Heavy type of expanded metal machine no need decoiler,because heavy type of expanded metal machine have secondary machine,feeding and bearing sheet material by secondary machine,so no need decoiler.



Anao 5T decoiler, uncoiler machine features:

  1. Anao decoiler machine have nice appearence.
  2. Decoiler machine weight heavy,so indeed can bearing 5ton coil,high efficency than other light weight decoiler machine.
  3. Low noize,reducing noise pollution.
  4. Recoiler machine easy control and operate.

Parameter:



 Main parameter of Anao 5T  decoiler

Width of the plate

1000mm

Power

2.2KW

Reducer type

Type 250

Bearing

5T

Weight

700KG
Inner diameter 450-600mm

Voltage

380V 50Hz 3phases
Measurement 2600mm*1000mm*1350mm



This kind of decoiler collocate with expanded metal machine JQ25-16,expanded metal machine JQ25-16 detailed info:



Expanded metal machine JQ25-16:
Max working width:1000mm
Material thickness:0.2-1.2mm
Distance of feeding:0-3.0mm
Working speed:150/min
Motor:3KW 220/380v 50Hz
Weight:2470KG
Measurement:1750mm*1500mm*1900mm

Decoiler holding and feeding material for expanded metal machine,and expanded metal machine produce expanded metal mesh.



Wooden case package of decoiler:



Steel / Aluminum Coil Sheet Metal Decoiler For Expanded Metal Machine Blue Color 0
