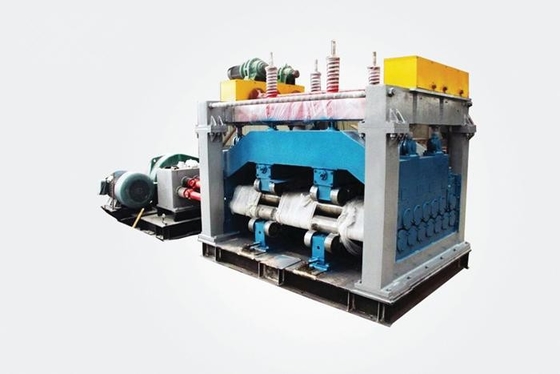

1600 Mm Width Electronic Expanded Metal Mesh Leveling Machine With 15 Rollers

large.img.alt
small.img.alt small.img.alt

Large Image :  1600 Mm Width Electronic Expanded Metal Mesh Leveling Machine With 15 Rollers Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: Anao
Certification: CE, ISO9001
Model Number: XP16

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: one 20' open-top container
Delivery Time: 20-30 days after receiving deposit or L/C
Supply Ability: 2-3 sets per month
Detailed Product Description
Product: Leveling Machine Working Width: 1600mm
Thickness: 0.5-2.0mm No. Of Rollers: 15 Pcs
Roller Diameter: 90mm Motor: 11KW220/380v 50Hz
Weight: 6.5 Ton Measurement: 3500mm*2000mm*1600mm
High Light:

sheet leveling machine

,

metal straightening machine



1600 Mm Width Electronic Expanded Metal Mesh Leveling Machine With 15 Rollers





Leveling machines main application:



Leveling machine can leveling all kinds of hot or cold steel plate and wire mesh,especially expanded metal mesh.Leveling machine using steel plate’s “bauschinger effect”, both positive and negative bending of the plate several time.So many original curvature gradually becomes a single curvature, and ultimately flattening.



Leveling machine main technical parameters:



NO. Parameters
1 Working width 1600 mm
2 Steel plate or mesh thickness 0.5-2 mm
3 Max working speed 9m/min
4 Roller diameter 90 mm
5 No.of rollers 13pcs
6 Roller length 1650 mm
7 No. of pinch rollers 2 pcs
8 Leveling precision 1.5mm
9 Max roller route 60 mm
10 Roller material 40Cr
11 Roller treatment



Lathe finish high frequency quench grinding machine treatment

12 Roller shaft Self-aligning bearing
13 Main motor 11KW
14 Screwdown motor 2.2KW (2 sets)
15 Backup roller 2 sets



Leveling machines structure and features:



Leveling machine consist of base frame,rollers, moved cross beam,screw down mechanism,

transmission systems,auxiliary box,carrying roller device,lubricating system, electronic control system,ect.

The motor drives the reducer and distribution box to drive up and down the leveling rollers through the universal connecting shaft.Distribution box adopts first - class transmission and second - class distribution structure.It has the advantages of uniform load distribution, smooth movement and long service life.



Leveling device:



Leveling device consist of rollers,roller supporting seat,back-up roller device and upper supporting roller holder.Generally leveling machine designed 13 pieces of roller level structure,upper 6 rollers,bottom 7 roller.We can also produce according to customer’s demand,like 11 rollers,15 rollers or 19 rollers.



The leveling roller is made of material 40Cr with frequency quenching and fine grinding. Sufficient strength, stiffness and surface hardness features,to guarantee the service life of leveling rollers.

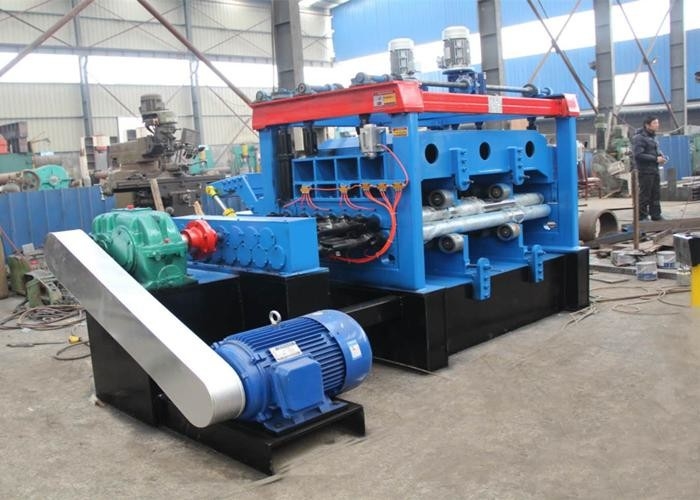

Leveling machine photo:



1600 Mm Width Electronic Expanded Metal Mesh Leveling Machine With 15 Rollers 0
