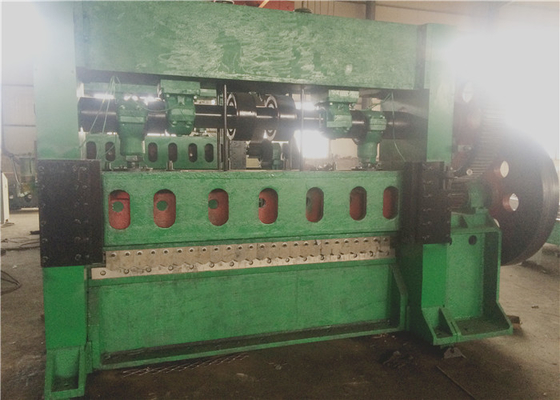

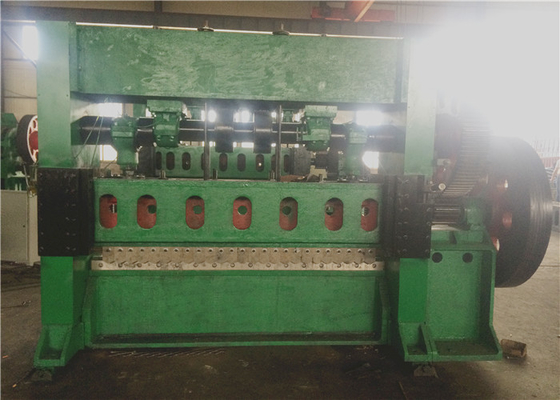

Automatic Diamond Wire Mesh Machine , Different Types Gabion Mesh Machine

Name: Automatic Diamond Wire Mesh Machine , Different Types Gabion Mesh Machine
Brand: Anao
SKU: JQ25 series
Price: 1.00 USD
Availability: InStock
Rating: 5 (151 reviews)

Large Image : Automatic Diamond Wire Mesh Machine , Different Types Gabion Mesh Machine Get Best Price

Product Details:

Place of Origin:	Hebei China
Brand Name:	Anao
Certification:	CE,ISO9001
Model Number:	JQ25 series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case package or container
Delivery Time:	30 days after receiving deposit or L/C
Supply Ability:	2 - 3 sets per month

Contact Now

Detailed Product Description

Product:	Expanded Metal Machine	Max Thickness:	0.2-10mm
Working Width:	600-4000mm	Distance Of Feeding:	0-30mm
Motor:	2.2KW-75KW	Voltage:	220/380V 50Hz 3phases
High Light:	expanded wire mesh machine , expanded mesh making machine

Automatic Expanded Metal Sheet Diamond Mesh Making Machine With Different Types

Application:

Expanded metal machine used for produce expanded metal mesh.Material can be galvanized steel,aluminum,stainless steel,titanium,copper,nickel,ect.

The most common expanded metal mesh hole style is diamond style,like the photo below:

Automatic Diamond Wire Mesh Machine , Different Types Gabion Mesh Machine 0

Expanded metal mesh hole style also can be hexagon,and other kind of mesh style:

The light expanded metal mesh widely used for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.Heavy expanded metal mesh used for road fence,sports venues fence,decoration,scaffold,building,ect.

Advantages:

Expanded metal machine have various of machine types,different working width and different thickness.
Automatic/PLC control is advanced than before,and can operate easily.
Designed high speed type for produce expanded metal mesh with small LWD&SWD and small thickness.
Production no waste material,can save costing,avoid waste.

Technical parameter of expanded metal machine JQ25 series:

Expanded metal machine
Working width	600mm-4000mm
Max thickness	0.2-10mm
Distance of feeding	0-30mm
Motor	2.2KW-75KW
Voltage	220/380v 50Hz 3phases

Some of the expanded metal machine detailed parameter:

Model	Material thickness	Material max width	Distance of feeding	Stroke per min	Motor
JQ25-6.3	Max 1.0mm	600mm	0-3.0mm	300/min	2.2kw
JQ25-16	Max 1.2mm	1000mm	0-3.0mm	150/min	3kw
JQ25-25	Max 1.5mm	1250mm	0-3.0mm	150/min	4kw
JQ25-40	Max 1.5mm	1500mm	0-5.0mm	150/min	7.5kw
JQ25-63	Max 4.0mm	2000mm	0-10mm	60/min	15kw
JQ25-100	Max 6.0mm	2000mm	0-10mm	52/min	22kw
JQ25-160	Max 8.0mm	2100mm	0-10mm	35/min	45kw
